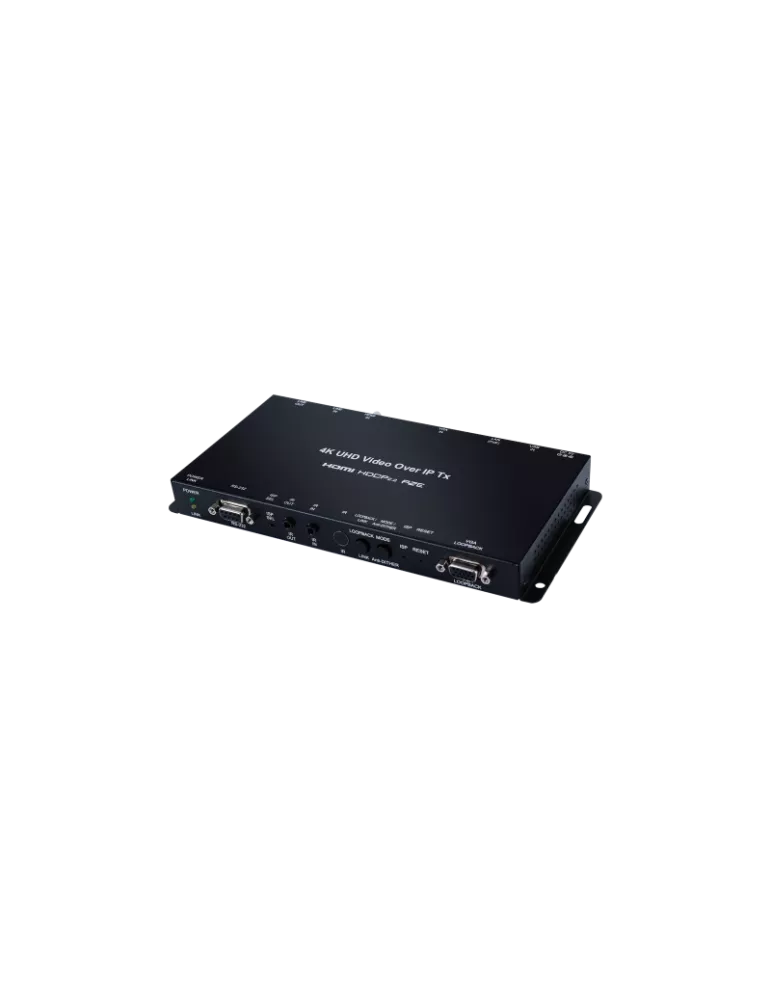

4THEWALL IPKVM0201ETX IPKVM transmitter 4TheWall SC-IPKVM0201E-TX
4THIPKVM0201ETX
The 4THEWALL SC-IPKVM0201E-TX 4K IPKVM transmitter is perfect for meeting rooms and crisis centers. It transfers HDMI/VGA signals via TCP/IP and supports HDMI 1.4, HDCP 2.2, various audio formats, and video/audio transmission over TCP/IP. It supports keyboard, mouse and USB storage, and can be controlled via WebGUI, Telnet.
In stock
Data sheet
| Brand | 4TheWall |
| I/O connectors | INPUTS: 1x HDMI, 1x VGA, 1x 3.5 mm stereo audio, 1xRS232 and 1xUSB-B / OUTPUTS: 1x Cat.5e / 6/7 (LAN) and 1x 3.5 mm stereo audio / 1x RJ45 |
| Miscellaneous news | Management: Web GUI, Telnet, front panel |
| Dimensions | 231.5 × 108 × 25 mm |
| Weight | Net weight: 0.66 kg |
More info
Discover 4THEWALL's SC-IPKVM0201E-TX 4K IPKVM transmitter, the perfect solution for your conference rooms, meeting rooms or crisis management centers. It's perfectly suited to act as the backbone of your developing technology systems.
With this transmitter, you have the ability to move HDMI / VGA signals to your network thanks to KVM logic using TCP / IP protocol.
Important features:
- Compatible with HDMI 1.4 and HDCP 2.2 for optimum image quality
- Support for LPCM 2.0 / 5.1 / 7.1, Bitstream and HD Bitstream for unsurpassed sound quality
- Enables video and audio transmission over TCP / IP with Unicast (point-to-point) or Multicast (multipoint-to-point)
- Supports keyboard, mouse and USB storage expansion for easy, convenient use
- Transmitter and receiver can be powered directly via PoE (802.3af) for simplified installation
- Controllable via WebGUI, Telnet and front-panel buttons for ease of use
Opt for 4THEWALL's SC-IPKVM0201E-TX 4K IPKVM transmitter and add a new dimension to your presentations and conferences.
With this transmitter, you have the ability to move HDMI / VGA signals to your network thanks to KVM logic using TCP / IP protocol.
Important features:
- Compatible with HDMI 1.4 and HDCP 2.2 for optimum image quality
- Support for LPCM 2.0 / 5.1 / 7.1, Bitstream and HD Bitstream for unsurpassed sound quality
- Enables video and audio transmission over TCP / IP with Unicast (point-to-point) or Multicast (multipoint-to-point)
- Supports keyboard, mouse and USB storage expansion for easy, convenient use
- Transmitter and receiver can be powered directly via PoE (802.3af) for simplified installation
- Controllable via WebGUI, Telnet and front-panel buttons for ease of use
Opt for 4THEWALL's SC-IPKVM0201E-TX 4K IPKVM transmitter and add a new dimension to your presentations and conferences.
