INFOBIT IWALL409R 9 Screen Video Wall Controller iWall 409R
INFIWALL409R
The iWall 409 Infobit is an Ultra HD 4K 60Hz video wall controller with 3.5 mm audio output. It offers multiple inputs/outputs, cascading, multiple display modes, and free configuration. It supports 90-degree portrait display or 180-degree rotation. It uses FPGA technology for real-time processing without delay. 3-year warranty.
In stock
Data sheet
| Brand | Infobit |
| Resolution | Personalized resolution support |
| I/O connectors | OUTPUTS: 9x HDMI1.3, Loopou DP1.2, Audio M3 |
| Miscellaneous news | Remote control & RS232, Supplied with Displayport cable, 12V/2A power supply, remote control - 3-year warranty |
| Dimensions | 270 x 122.5 x 20 mm |
| Weight | 0.84 kg |
| Food/Consumer | 12V / 2A, 224 Watts |
More info
Discover the iWall 409 Infobit:
Ø This is a high-performance Ultra HD 4K 60Hz video wall controller.
Ø It features a 3.5mm audio output for the ultimate sound experience.
Ø It offers a multitude of input/output options, including 4 HDMI inputs (1x 4K@60Hz, 3x 4K@30Hz), a DP input (4K@60Hz), 9 HDMI outputs (1080p@60Hz), and a DP loop-through output for added flexibility.
Ø It supports cascading, for more complex configuration.

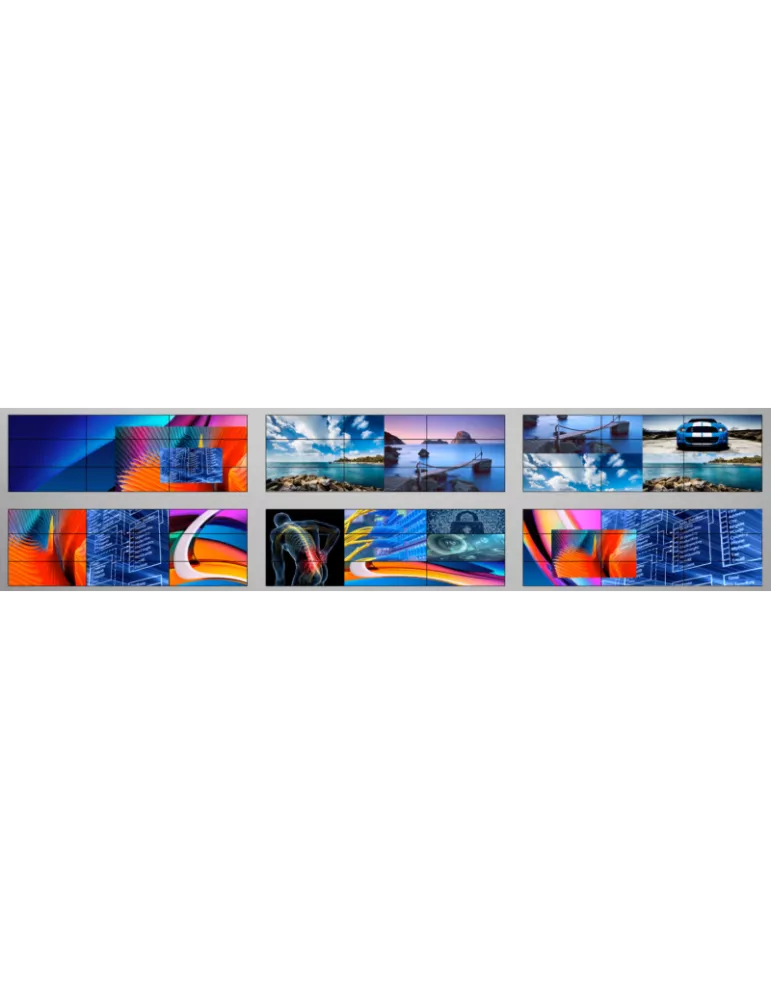

Ø It offers several display modes to suit your needs: single image, PIP (Picture in Picture), POP (Picture on Picture), PYP (Picture by Picture: Up-Down or Left-Right side by side), or Quad-view.
Ø It is compatible with the matrix model (1x1 single display mode) for simplified viewing.
Ø It offers free configuration with support for IR remote control and RS232 serial control for easy operation.
Ø It supports 90-degree portrait display or 180-degree rotation for customized viewing.
Ø It uses FPGA technology, a pure hardware architecture that ensures real-time processing without delay.
Ø It's covered by a 3-year warranty for your peace of mind.
In summary, the iWall 409 Infobit is an advanced video wall controller, offering a multitude of features for an exceptional visual experience.
Ø This is a high-performance Ultra HD 4K 60Hz video wall controller.
Ø It features a 3.5mm audio output for the ultimate sound experience.
Ø It offers a multitude of input/output options, including 4 HDMI inputs (1x 4K@60Hz, 3x 4K@30Hz), a DP input (4K@60Hz), 9 HDMI outputs (1080p@60Hz), and a DP loop-through output for added flexibility.
Ø It supports cascading, for more complex configuration.
Ø It offers several display modes to suit your needs: single image, PIP (Picture in Picture), POP (Picture on Picture), PYP (Picture by Picture: Up-Down or Left-Right side by side), or Quad-view.
Ø It is compatible with the matrix model (1x1 single display mode) for simplified viewing.
Ø It offers free configuration with support for IR remote control and RS232 serial control for easy operation.
Ø It supports 90-degree portrait display or 180-degree rotation for customized viewing.
Ø It uses FPGA technology, a pure hardware architecture that ensures real-time processing without delay.
Ø It's covered by a 3-year warranty for your peace of mind.
In summary, the iWall 409 Infobit is an advanced video wall controller, offering a multitude of features for an exceptional visual experience.
